UNIT-7 : SIMPLE MACHINE BLOCK

HOW QUESTION WILL BE ASKED IN ANNUAL EXAM
Draw the following Orthographic Views of the given machine blocks:
a. Front View
b. Top View
c. Side View
Draw projection symbol, give dimensions, print scale used and titles.

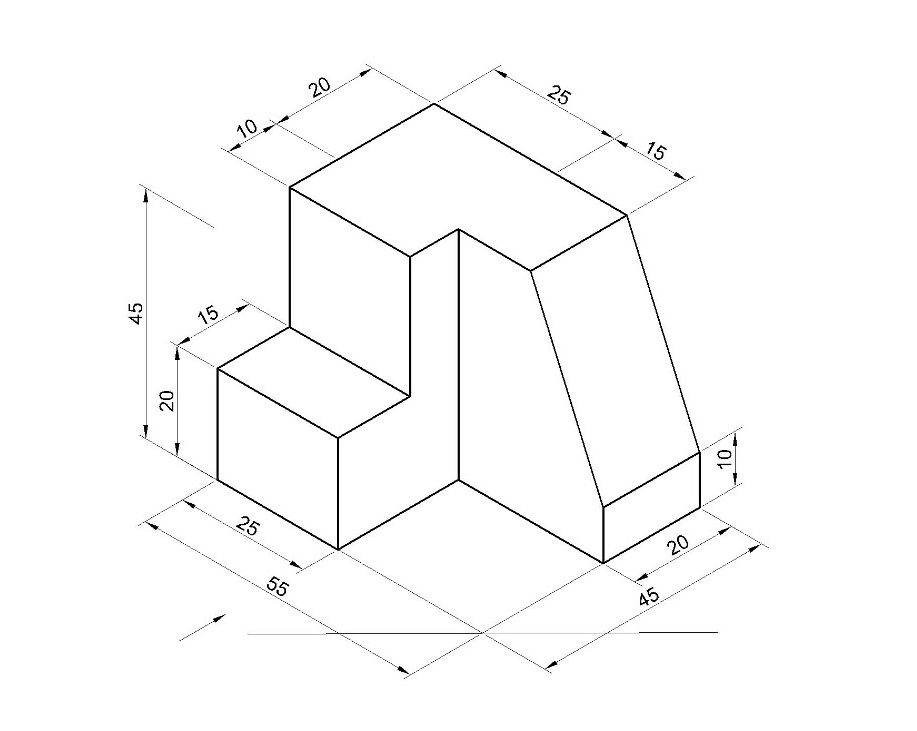

MACHINE BLOCK – 1
Reference from CBSE Practical of Class 12th

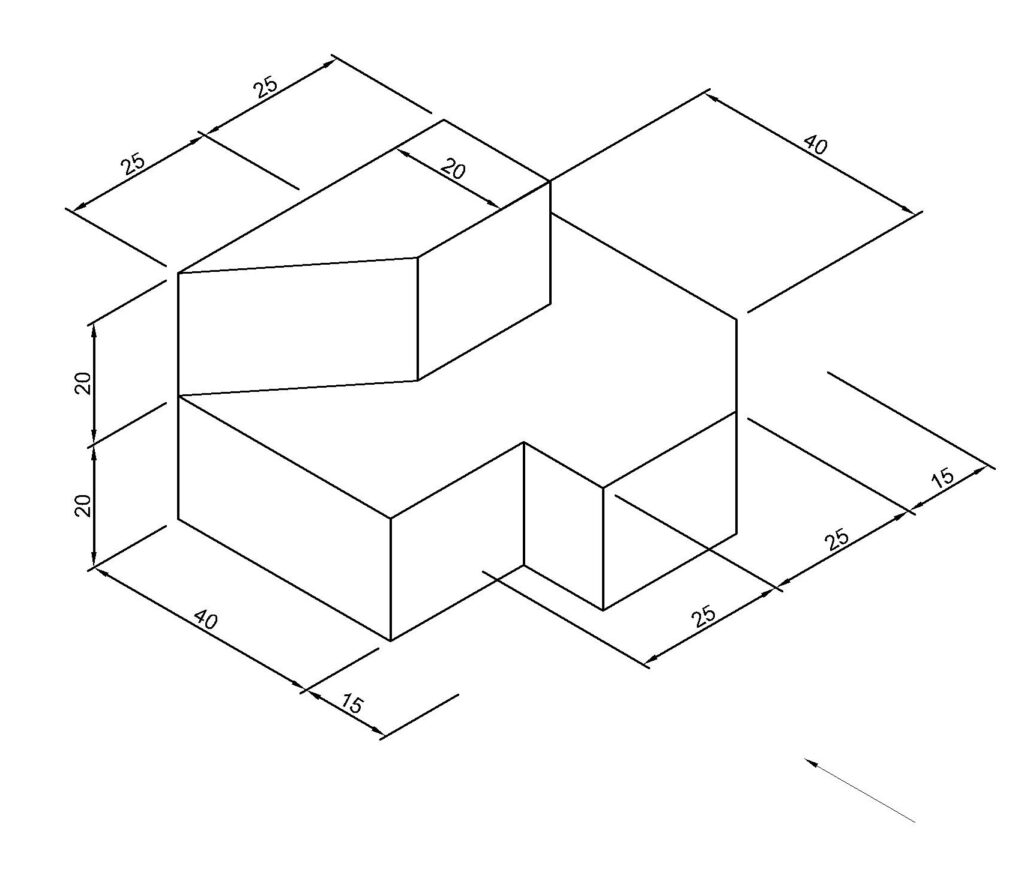

MACHINE BLOCK – 2
Reference from CBSE Practical of Class 12th

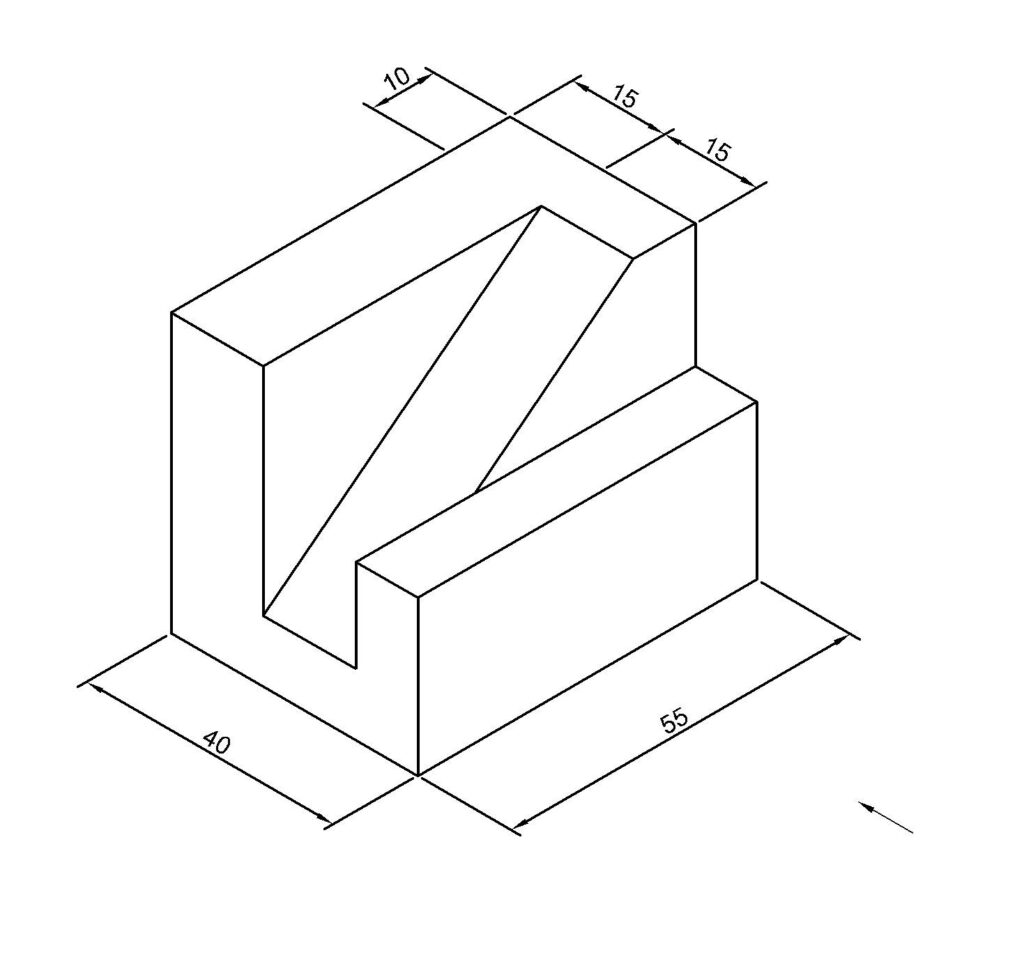

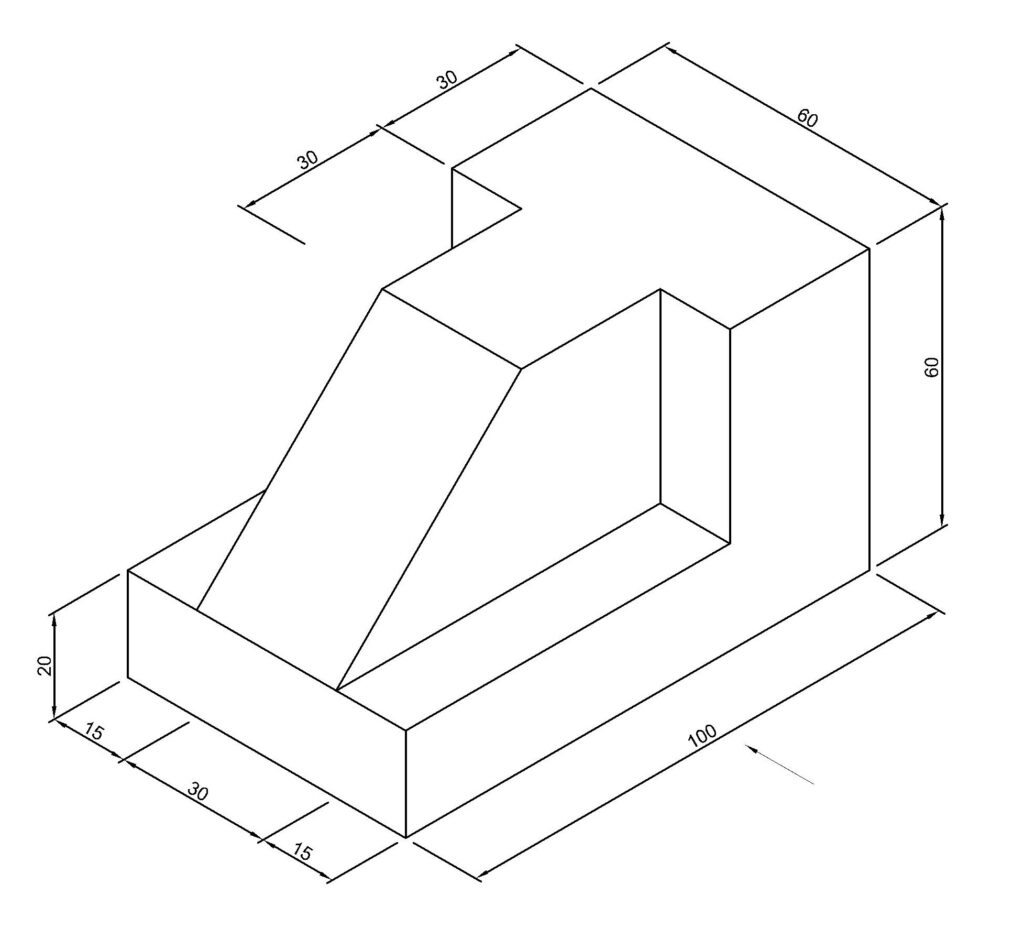

MACHINE BLOCK – 3
Reference from CBSE Practical of Class 12th

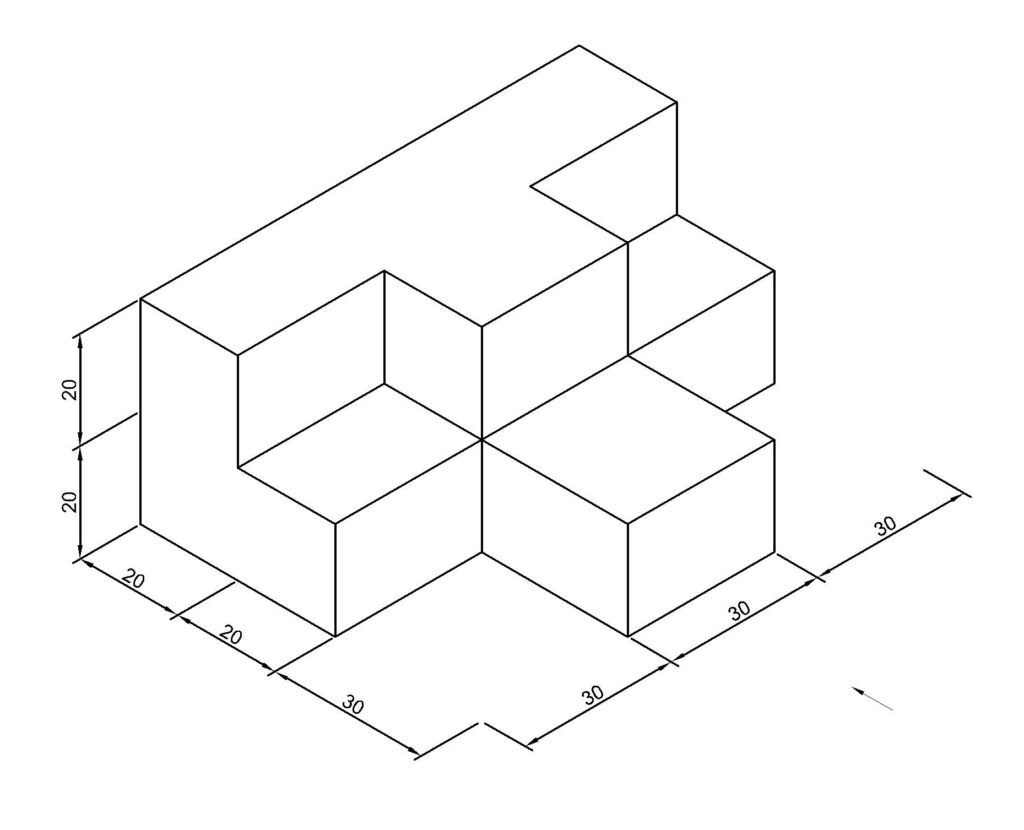

MACHINE BLOCK – 4
Reference from CBSE Practical of Class 12th

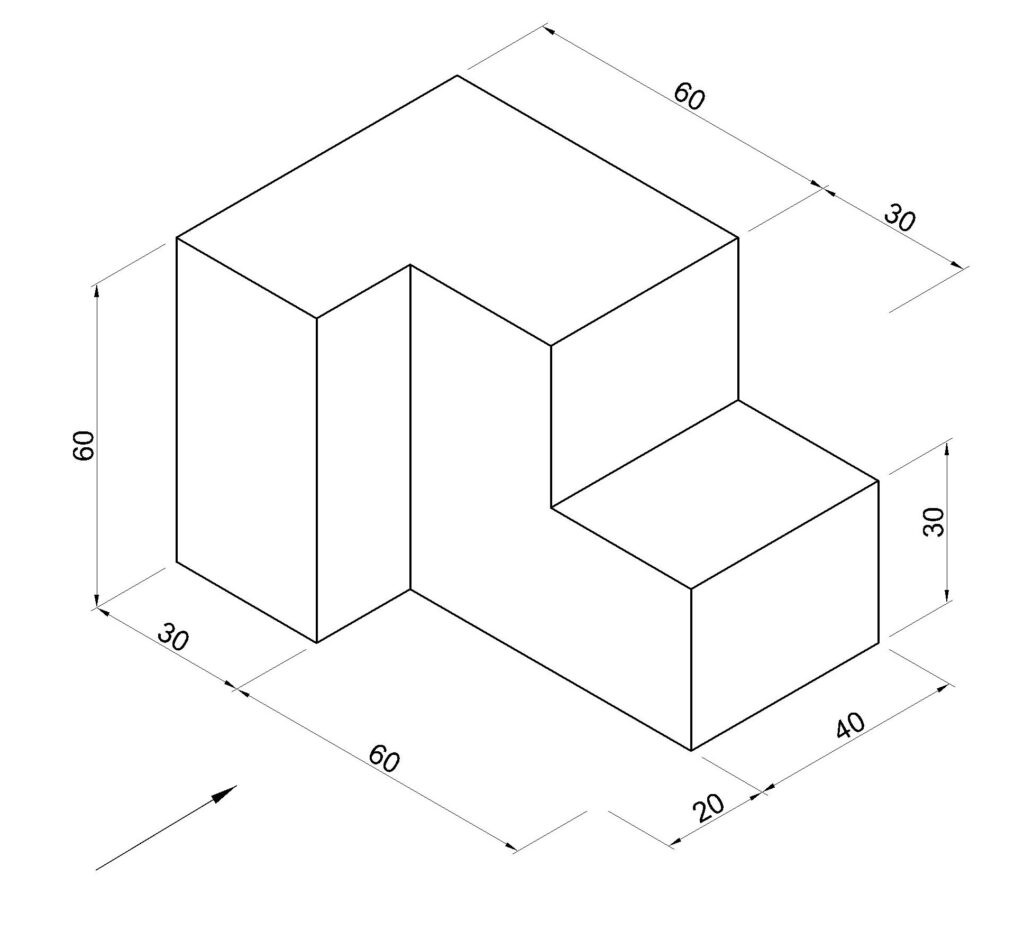

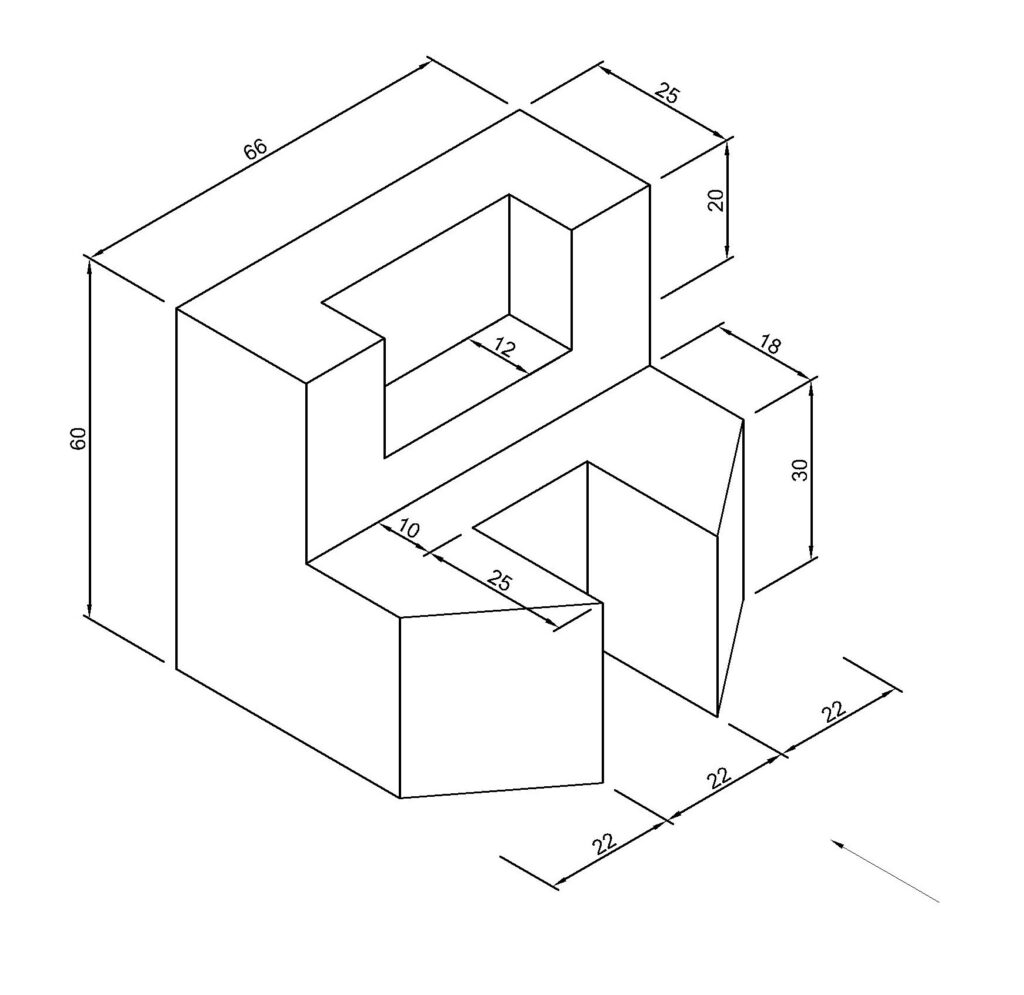

MACHINE BLOCK – 5
Reference from CBSE Practical of Class 12th

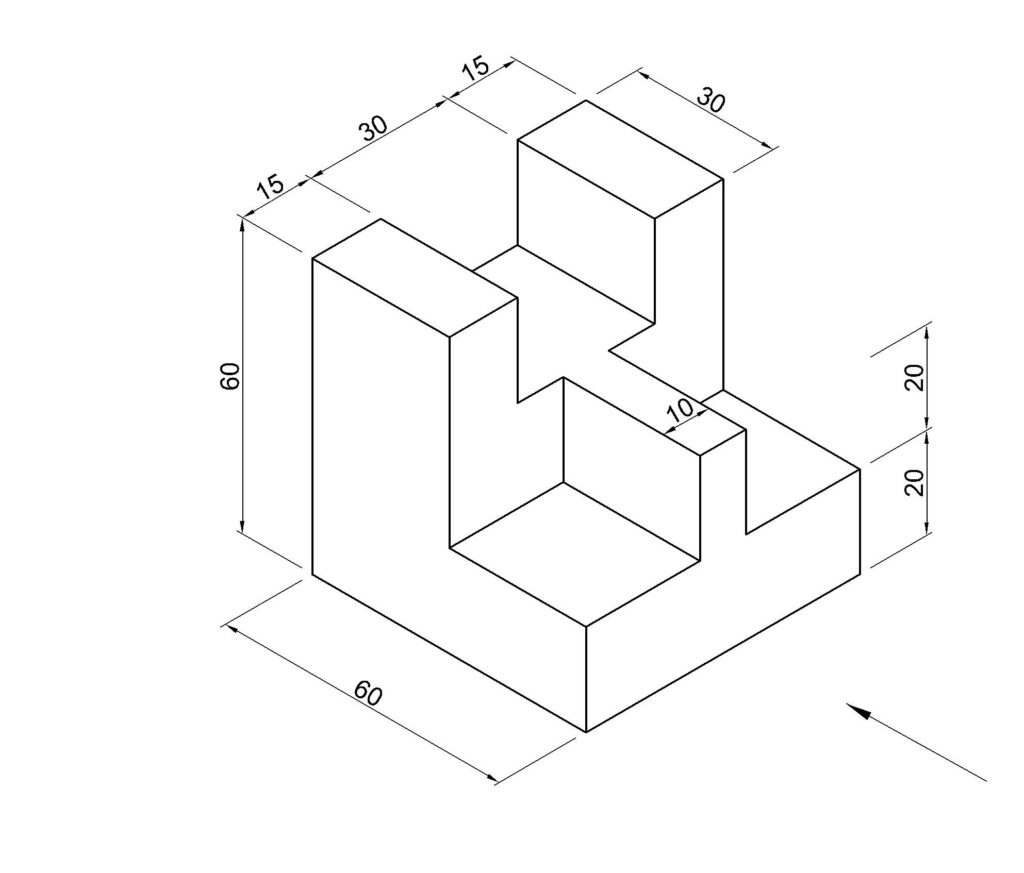

MACHINE BLOCK – 6
Reference from CBSE Practical of Class 12th

MACHINE BLOCK – 7
Reference from CBSE Practical of Class 12th

MACHINE BLOCK – 8
Reference from CBSE Practical of Class 12th

MACHINE BLOCK – 9
Reference from CBSE Practical of Class 12th

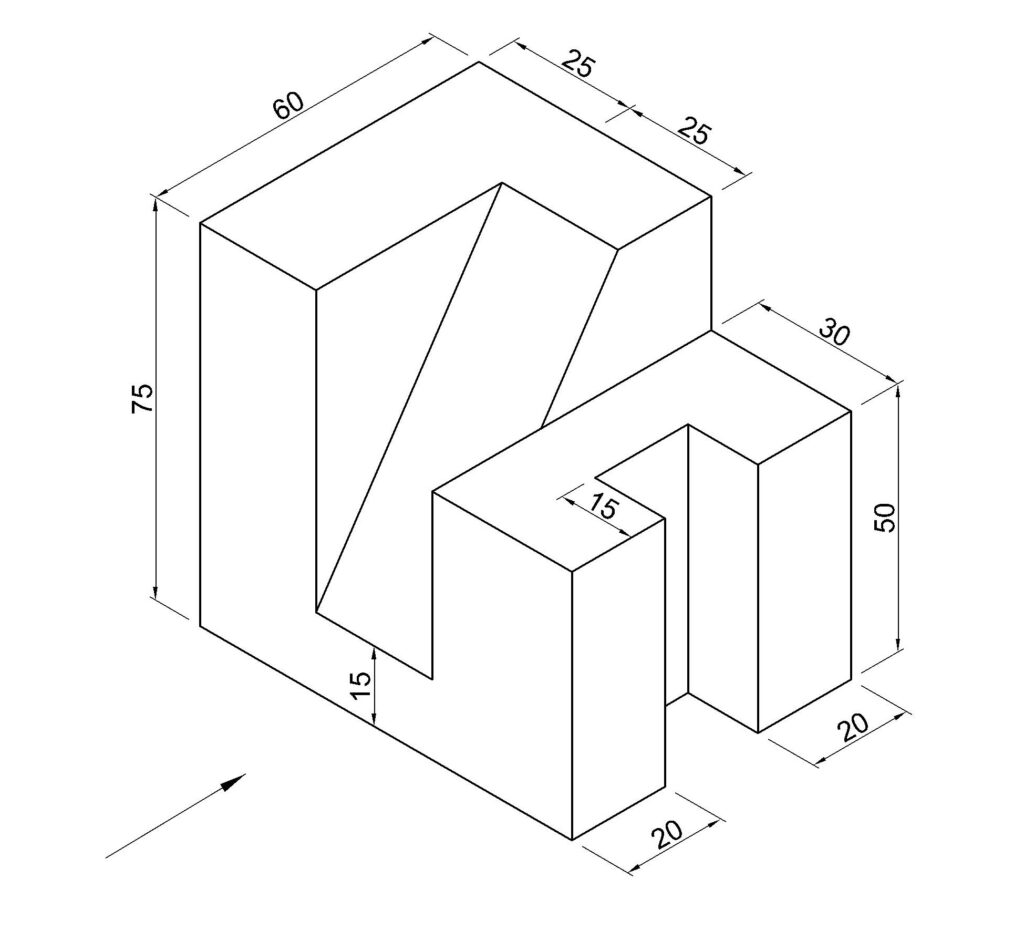

MACHINE BLOCK – 10
Reference from CBSE Practical of Class 12th

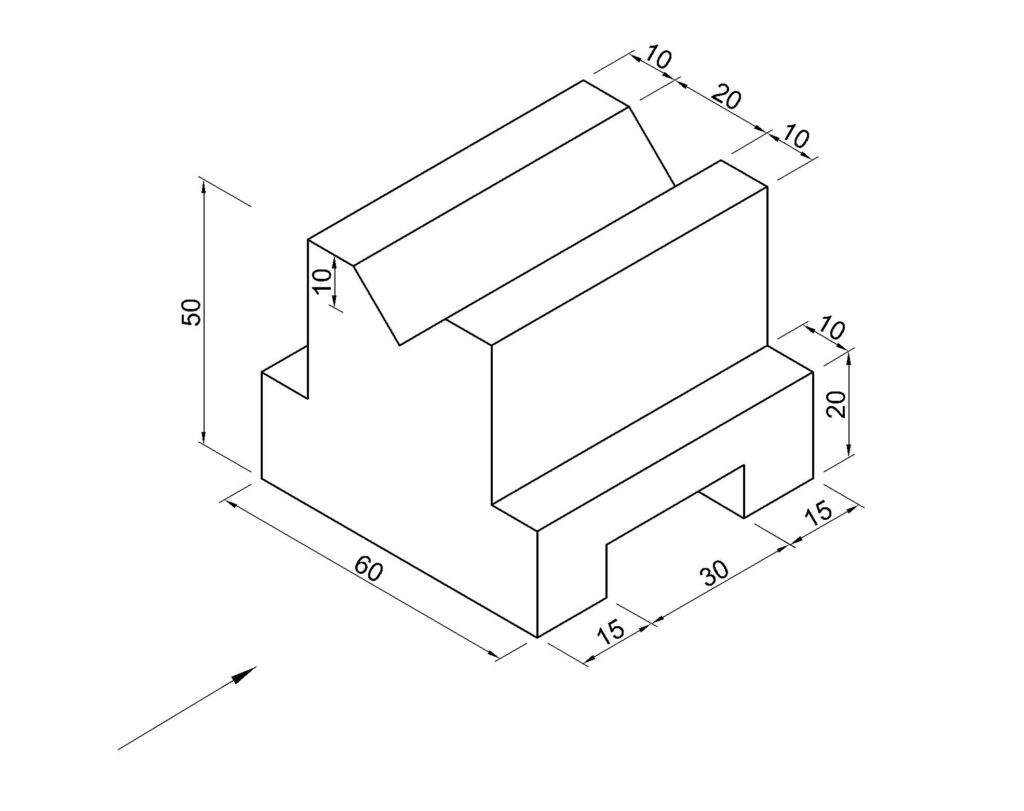

MACHINE BLOCK – 11
Reference from CBSE Practical of Class 12th

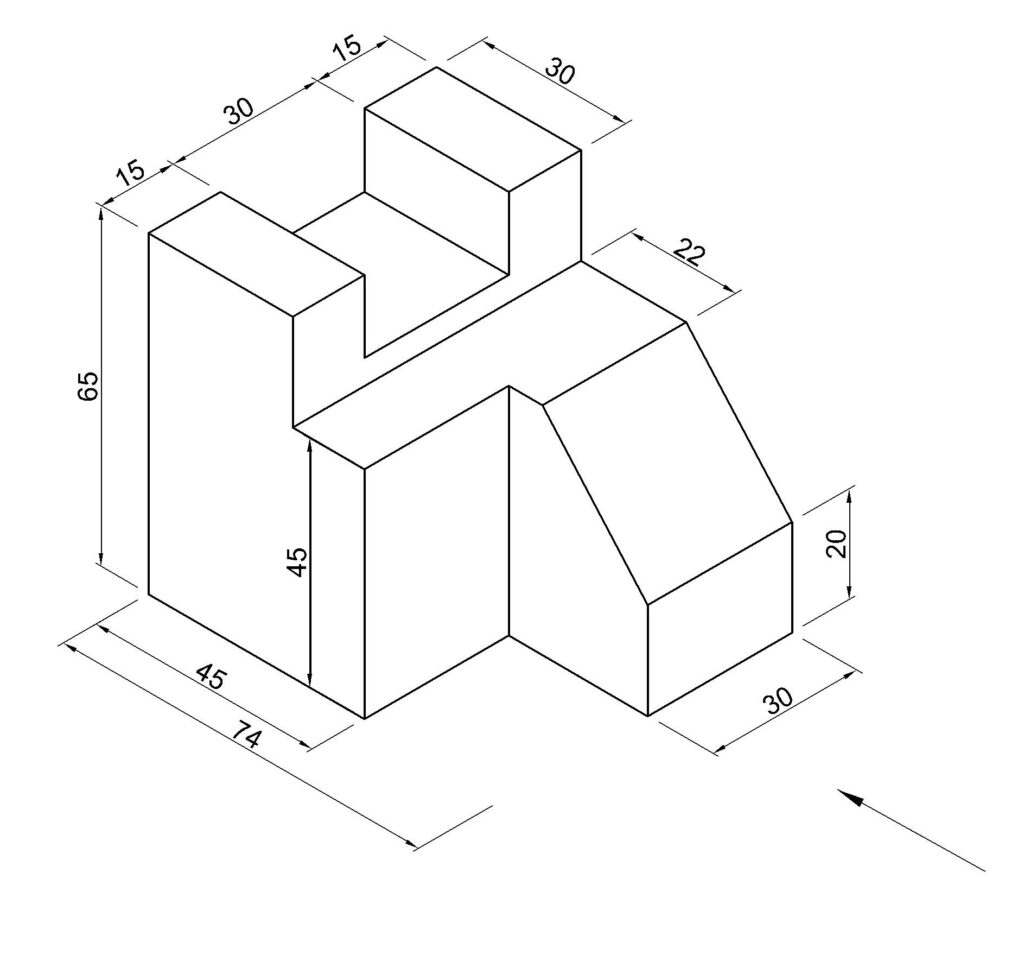

MACHINE BLOCK – 12
Reference from CBSE Practical of Class 12th

MACHINE BLOCK – 13
Reference from CBSE Practical of Class 12th

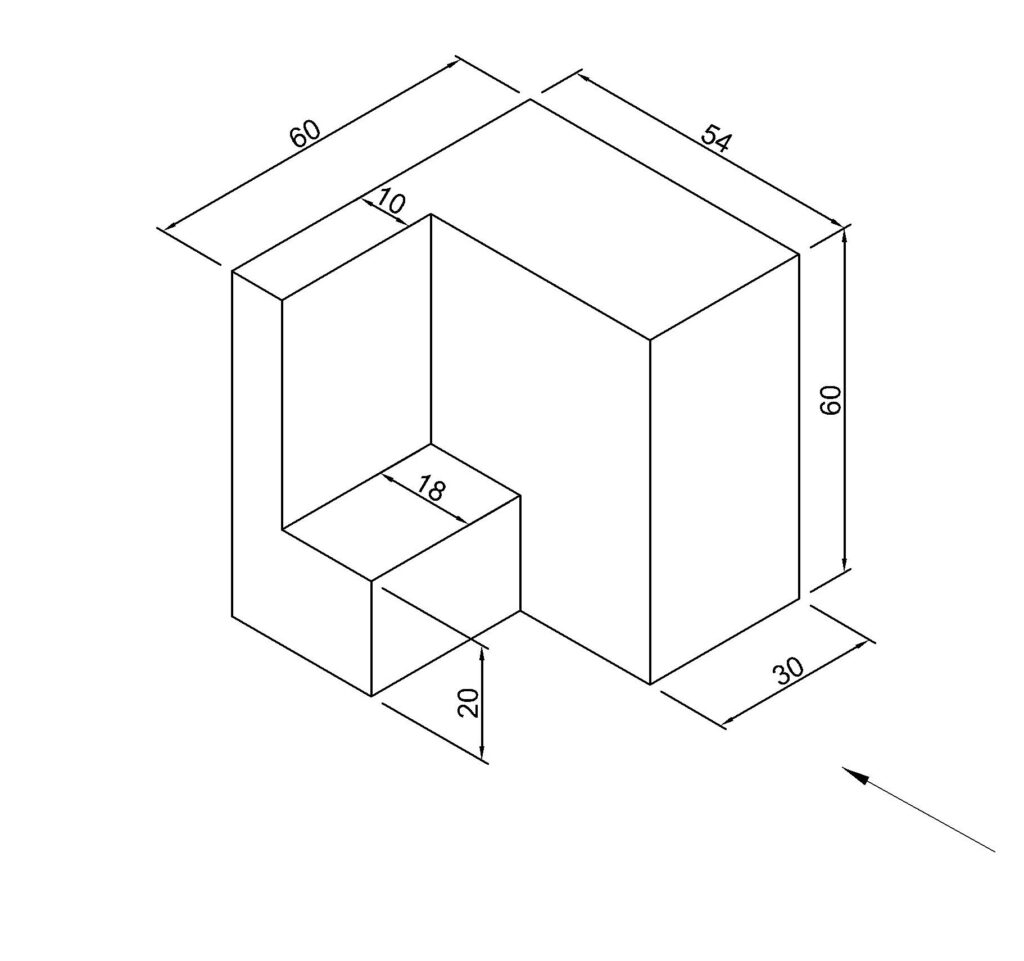

MACHINE BLOCK – 14
Reference from CBSE Practical of Class 12th

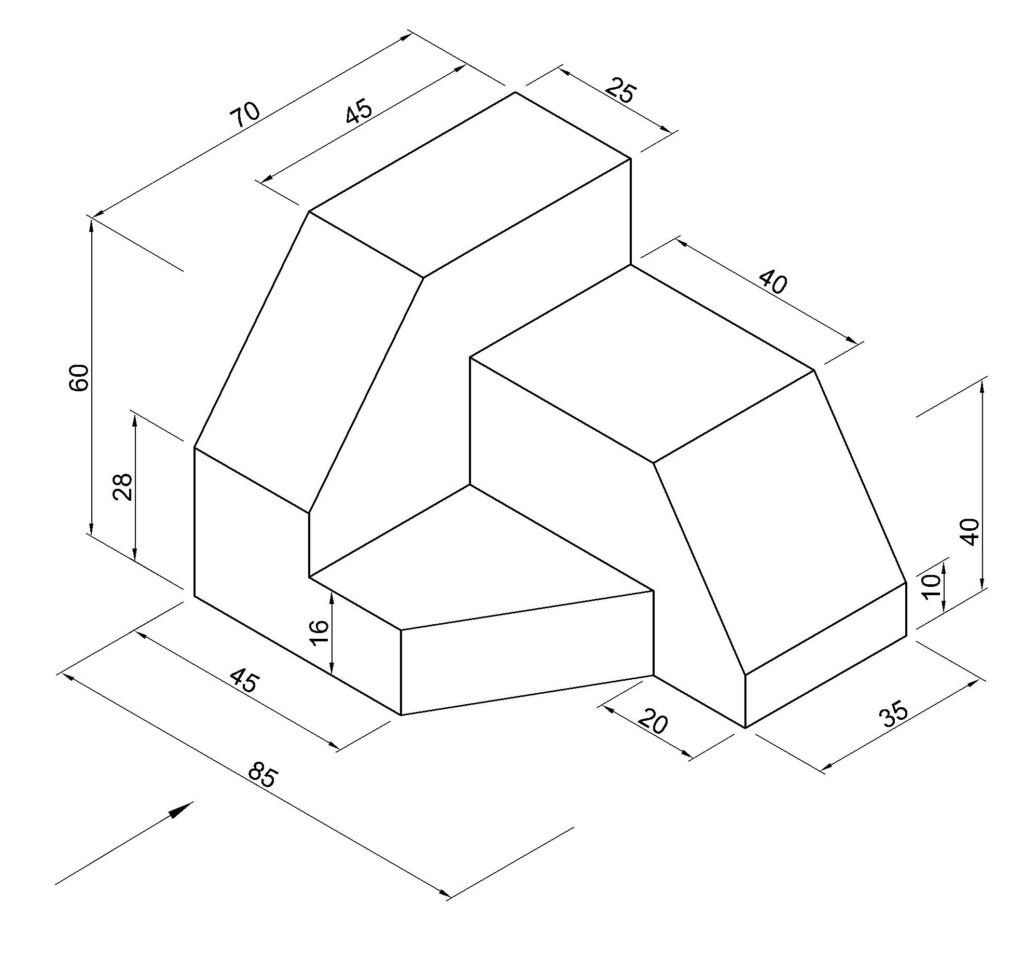

MACHINE BLOCK – 15
Reference from CBSE Practical of Class 12th
